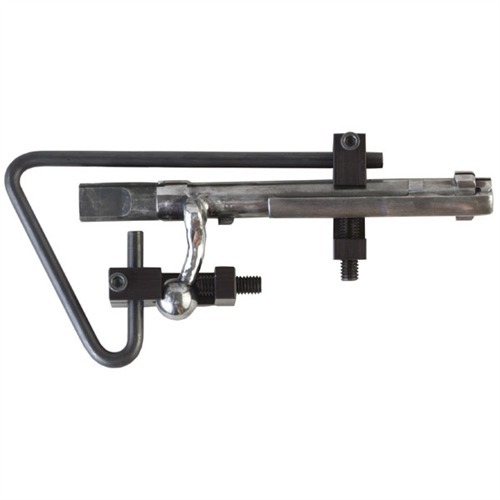

Any gunsmith who has ever fiddled, fussed and fumed as he tried to align a bolt knob with the cut-off stub of a military bolt handle while altering the bolt for scope mounting, will love this jig. As the illustration shows, the jig makes it possible to lock both knob and bolt in precisely the desired relationship and hold them firmly, while leaving adequate space to weld by either the acetylene or arc methods. Getting the knob and bolt into alignment used to be a real chore and, without the jig to hold it all together, one incautious movement could upset the alignment, leaving the work to be done all over again. The jig employs a different approach to aligning the handle to the bolt by using a protractor supplied with the jig kit. Full and completely illustrated instructions are supplied with each jig set. They assure an accurate setup. The Brownell Bolt Welding Jig will pay for itself many times over during the course of the years - not only in time but in saved dispositions! Further, it makes it possible for the man who does not have welding facilities in his shop to get the bolt all ready to weld, and then take it to a professional welding shop for the final work. If you have ever tried to explain to a non-gun-loving welder how you wanted the job done and then stood there and watched him "botch it up", the great value of the JIG to you is even more apparent!!
Jeder Gunsmith, der jemals herumgepfuscht hat, während er versucht hat, einen Bolzenknopf mit dem abgeschnittenen Stummel eines militärischen Bolzenhandgriffs auszurichten, wird dieses Jig lieben. Wie die Abbildung zeigt, ermöglicht das Jig, sowohl den Knopf als auch den Bolzen in der genau gewünschten Beziehung zu fixieren und sie festzuhalten, während ausreichend Platz bleibt, um entweder mit Acetylen- oder Lichtbogenschweißen zu arbeiten. Das Ausrichten von Knopf und Bolzen war früher eine echte Plage, und ohne das Jig, das alles zusammenhält, könnte eine unvorsichtige Bewegung die Ausrichtung stören, sodass die Arbeit von vorne beginnen muss. Das Jig verwendet einen anderen Ansatz, um den Griff am Bolzen auszurichten, indem es einen mit dem Jig-Kit gelieferten Winkelmesser verwendet. Vollständige und detaillierte Anleitungen werden mit jedem Jig-Set geliefert. Sie gewährleisten eine präzise Einrichtung. Das Brownell Bolt Welding Jig wird sich über die Jahre vielfach bezahlt machen – nicht nur in Zeit, sondern auch in gesparten Aufwendungen! Darüber hinaus ermöglicht es demjenigen, der keine Schweißmöglichkeiten in seiner Werkstatt hat, den Bolzen für das Schweißen vorzubereiten und ihn dann zu einer professionellen Schweißwerkstatt für die endgültige Arbeit zu bringen. Wenn du jemals versucht hast, einem nicht waffenliebenden Schweißer zu erklären, wie du den Job erledigt haben möchtest, und dann dort gestanden hast und zugesehen hast, wie er es "verpfuscht", wird der große Wert des JIGs für dich noch deutlicher!
