Developed for use in our space program to give the best possible welds, 3½% Nickel Steel Welding Rod is almost totally free of impurities and flows beautifully to produce an extremely smooth, non-porous weld with Oxy-Acetylene or TIG. Over the years many gunsmiths have asked for this rod to weld bolt handles and other items that will be polished after welding. Thanks to Jim Thompson, Maverick Gun Works of Topeka, Kansas, we’ve located a supplier of 3½% Nickel Steel Welding Rod. Says Jim, “I finally located some 3½% Nickel Steel Rod and the first bolt I welded was perfect. The rod is expensive but worth its weight in gold when you are welding bolt handles and any other job where a perfect weld is desired. I find I get the best results as follows: bring parts to welding temperature with a rather large flame, then back off on the flame until it is just hissing. I use a No. 2 tip. (You might find another works better.) Take your time, don’t get it too hot and you can work with it all day if you have to. The weld is easy to work with, file or machine. Be sure to use a neutral flame.” There is no flux or other coding on the part.

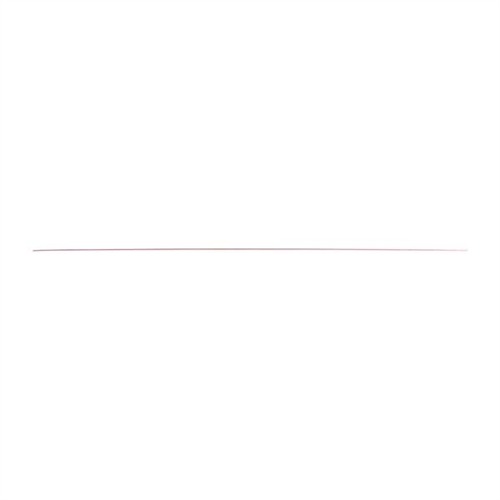

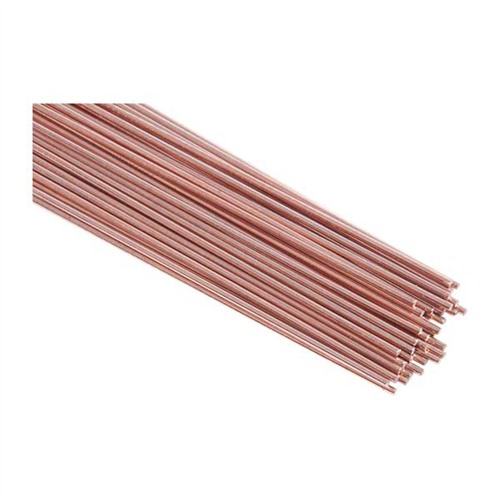

SPECS: Each piece is approximately .094" (2.4mm) or .045" (1.14mm) diameter, - 12" (30.5cm) long. Sold in 4 oz. (113 g), 8 oz. (227 g) and 1 lb. (454 g) paks.
Entdecke die Vorteile des 3½% Nickelstahl-Schweißdrahts!
Der 3½% Nickel Steel Welding Rod von BROWNELLS ist die ideale Wahl für alle, die perfekte Schweißnähte erzielen möchten. Entwickelt für unser Raumfahrtprogramm, ist dieser Schweißdraht nahezu frei von Verunreinigungen und fließt wunderbar, um extrem glatte, porenfreie Schweißnähte mit Oxy-Acetylene oder TIG zu erzeugen.
Warum du diesen Schweißdraht wählen solltest
- Schöne Schweißnähte: Der Draht sorgt für eine ästhetisch ansprechende Verbindung.
- Keine Blasenbildung: Dank seiner hohen Reinheit entstehen keine Blasen im Schweißbereich.
- Einfach zu verarbeiten: Der Schweißdraht lässt sich leicht nachbearbeiten, egal ob feilen oder maschinell.
Jim Thompson von Maverick Gun Works in Topeka, Kansas, sagt: „Ich habe endlich den 3½% Nickel Stahl Draht gefunden und die erste Schweißnaht war perfekt. Der Draht ist teuer, aber sein Gewicht in Gold wert, wenn du Schweißnähte an Bolzengriffen oder anderen Teilen machst, die nach dem Schweißen poliert werden sollen.“
Technische Spezifikationen
Jedes Stück hat einen Durchmesser von ca. .094" (2.4mm) oder .045" (1.14mm) und ist 12" (30.5cm) lang. Erhältlich in 4 oz. (113 g), 8 oz. (227 g) und 1 lb. (454 g) Paketen.
Um die besten Ergebnisse zu erzielen, bringe die Teile mit einer relativ großen Flamme auf Schweißtemperatur und reduziere dann die Flamme, bis sie nur noch zischt. Ich empfehle eine No. 2 Düse. Nimm dir Zeit, überhitze das Material nicht und du kannst den ganzen Tag damit arbeiten, wenn nötig. Achte darauf, eine neutrale Flamme zu verwenden.
