SUPERLATIVE ARMS LLC AR-15 ADJUSTABLE PISTON SYSTEM W/0.750" GAS BLOCK LEFT HAND The Superlative Arms patent pending “Bleed Off”, direct impingement, gas block for the AR15 platform adjusts the gas flow by bleeding the gas out of the block instead of restricting the flow like conventional adjustable blocks. NOT RATED FOR 300 BLACKOUT IN PISTOL LENGTH Results: The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler. Reduction of felt recoil. Patented adjustment detent is located outside of the block and therefore no contamination. The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up. Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out. When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back. DATA: Firearm Type: AR15 Gas Length: Pistol, Carbine, Mid-Length, and Rifle Weight: 12.8 oz., 13.1 oz, 13.4 oz, and 13.8 oz Piston Block Attachment Type: Clamp On, Socket Head Cap Screws Piston Block Material and Finish: 416 SS, Melonite Carrier: Ion Bonded, 1 pc. Carrier w/ Skis and Dimpled Key Gas Adjustment: 30 Locked Positions, Front Of Block Bleed Off Port: Front Of Block INCLUDED: Piston Block Assembly Carrier (bolt not included). (1) 3/32" X 6" Hex Key (tool to adjust gas screw) (1) 9/64" X 6" Hex key (tool to install/remove gas block plug) (1) Bushing and insert tool Installation Instructions & QR Code For Video Tutorial
Entdecke das innovative AR-15 Adjustable Piston System!
Das SUPERLATIVE ARMS LLC AR-15 ADJUSTABLE PISTON SYSTEM W/0.750" GAS BLOCK LEFT HAND ist ein patentiertes System, das die Gasströmung effektiv reguliert. Anstatt den Gasfluss wie herkömmliche verstellbare Blöcke zu beschränken, lässt es das Gas kontrolliert ab, was zu einer saubereren und kühleren Funktion führt.
Wichtige Informationen:
- Typ der Feuerwaffe: AR15

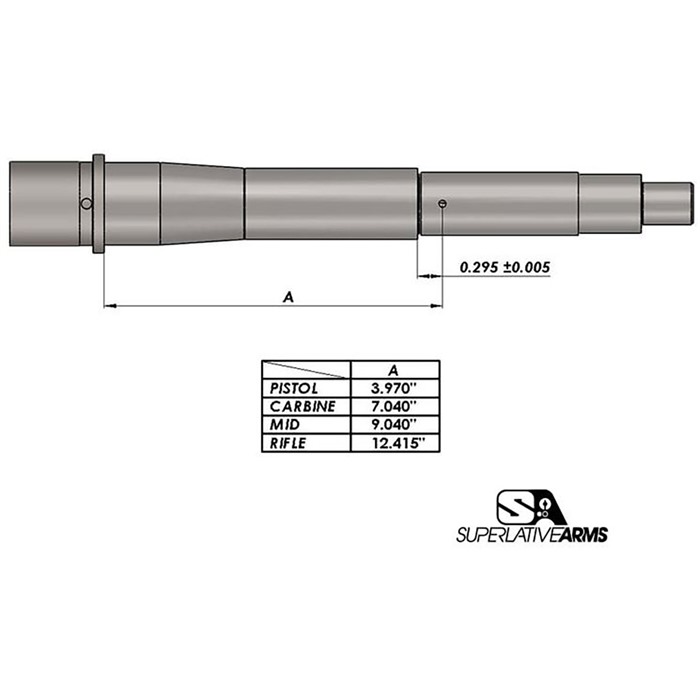

- Gaslängen: Pistol, Carbine, Mid-Length und Rifle
- Gewicht: 12.8 oz, 13.1 oz, 13.4 oz und 13.8 oz

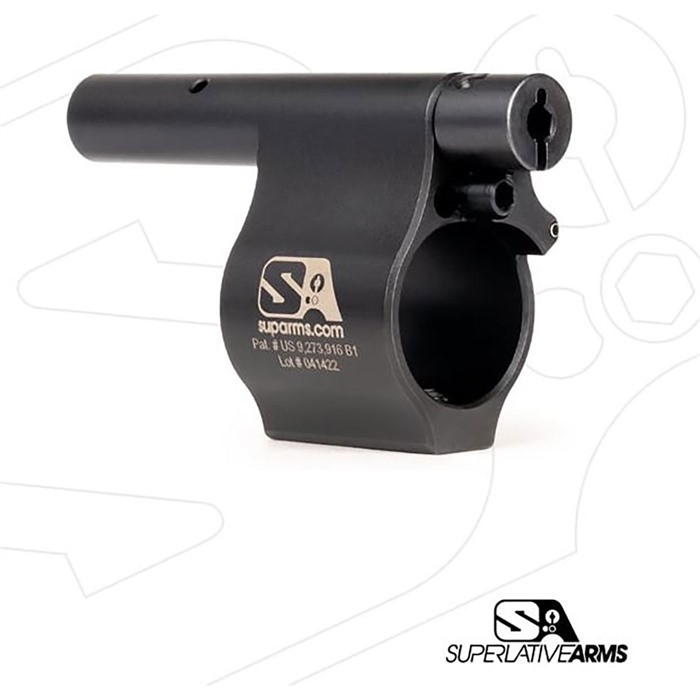

- Montageart des Piston Blocks: Clamp On, Socket Head Cap Screws
- Material und Finish des Piston Blocks: 416 SS, Melonite

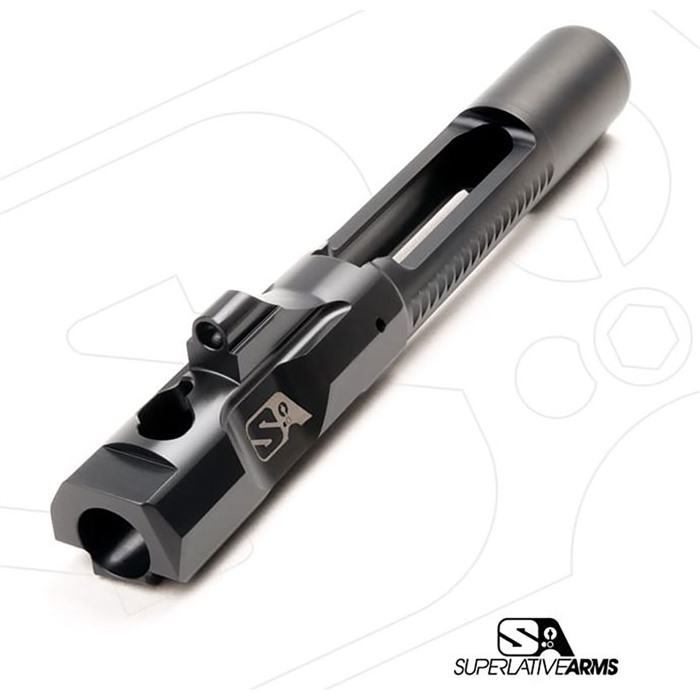

- Carrier: Ion Bonded, 1-teiliger Carrier mit Skis und Dimpled Key
- Gasverstellung: 30 gesperrte Positionen, vorne am Block
- Bleed Off Port: vorne am Block

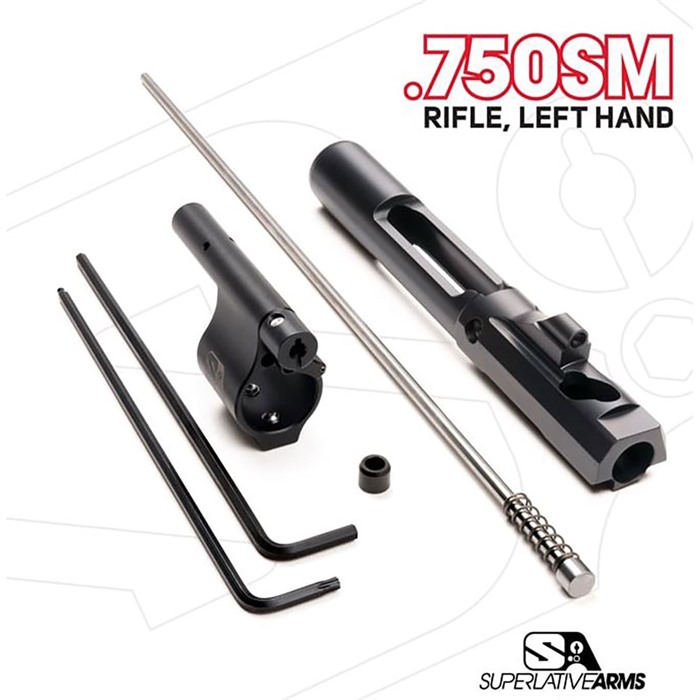

Lieferumfang:
- Piston Block Assembly
- Carrier (Bolzen nicht enthalten)
- (1) 3/32" X 6" Inbusschlüssel (Werkzeug zur Einstellung der Gasschraube)
- (1) 9/64" X 6" Inbusschlüssel (Werkzeug zum Ein- und Ausbau des Gasblockplugs)
- (1) Bushing und Einsetzwerkzeug
- Installationsanleitung & QR-Code für Video-Tutorial
Bitte beachte: Dieses Produkt ist nicht für 300 Blackout in Pistol Längen geeignet.
