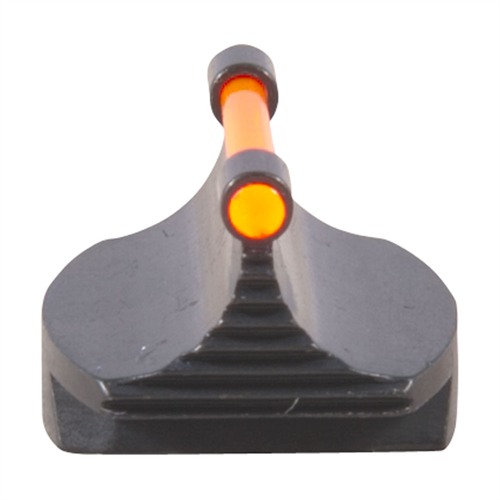

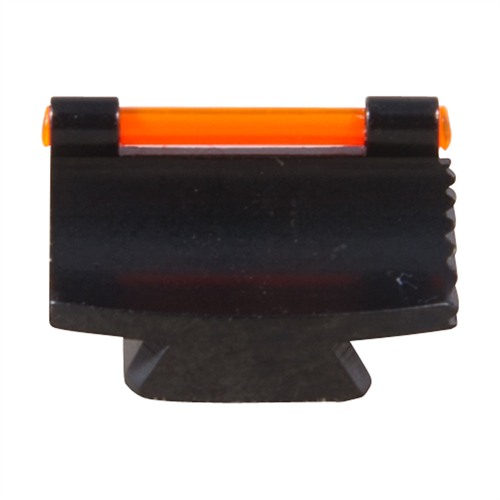

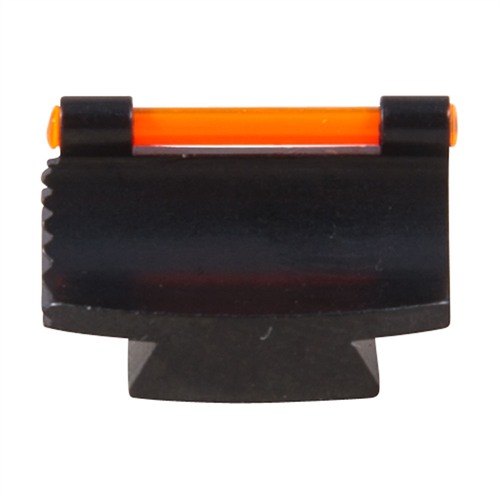

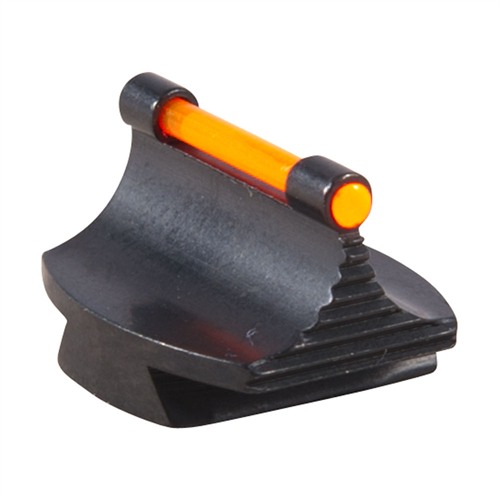

Precision-made sights for rifles, both with and without ramp bases. The blade is gracefully contoured, sloping toward the front. Made of steel and nicely blued to look good on any gun. GLOW SIGHTS: Two colors - Orange or Green .060" dia. optic rod. RAMP MOUNTED - .340 wide base.
SPECS: Steel, blue, polished finish. .620" (15mm) long. ORDERING: Select the sight height required using the Marbles and/or Williams charts and determine which Sight Style, Bead Type and Width is needed from the info above. Using the chart beside this copy, find the correct Marbles Sight and note the 9 digit Ordering No. For example: If you need a Contoured Ramp Front Sight, “MR” width, .290" (7.4mm) high, with a 1/16" (1.6mm) gold bead, follow the Height listing to the .290" figure, read across on the “MR” line to the 1/16" gold bead and note the number: 579-502-911. 1" = (2.54cm)
Mehr...
Präzisionsvisiere für Gewehre mit und ohne Rampensockel. Die Klinge ist elegant geformt und fällt nach vorne ab. Hergestellt aus Stahl und schön gebläut, um auf jeder Waffe gut auszusehen. GLOW SIGHTS: Zwei Farben - Orange oder Grün .060 "Durchmesser. Optische Stange. RAMP MOUNTED - .340 breite Basis.
Angaben: Stahl, blau, poliert. .620 "(15 mm) lang. BESTELLUNG: Wählen Sie die gewünschte Visierhöhe mit Hilfe der Murmel- und / oder Williams-Diagramme aus und bestimmen Sie anhand der obigen Informationen, welche Visierart, welcher Perlentyp und welche Breite erforderlich sind. Suchen Sie anhand des Diagramms neben dieser Kopie die richtige Murmeln Sehen Sie sich die 9-stellige Bestellnummer an und notieren Sie sie. Beispiel: Wenn Sie ein konturiertes Rampen-Visier mit einer Breite von 7,4 mm und einer Goldperle von 1,6 mm benötigen, folgen Sie den Anweisungen Die Höhenangabe für die .290 "-Figur finden Sie in der Zeile" MR "neben der 1/16" Goldperle. Notieren Sie die Nummer: 579-502-911. 1 "= (2,54 cm)
Mehr...
Kundenbewertungen zu MARBLE ARMS .410" FIBER OPTIC GLOW 41-W FRONT SIGHT STEEL ORANGE
Anzahl der Bewertungen: 3
Von brownells.com: 3
Durchschnittliche Bewertung: 2
Requires too much work to install(12.10.2015)
Replaced a Williams fiber optic front post with one from Marble
and I should have stayed with Williams. Even after filing numerous times the marble F.O. front post was extremely hard to install - if you file too much off you're screwed, so you end up
trying to fit it over and over again, filing a bit more each time. the Williams fiber optic front posts fit perfectly the first time you try. Save yourself a lot of grief and just by the Williams product.
Fitting needed, remove fiber to install(15.09.2017)
Yes, this sight has a base that is wider than most slots--I think the base on mine measured around .392". Would be a real advantage in an older, well-used rifle if its dovetail was "relieved" at some point; however, it's a (small) hassle to fit on a new gun (Henry Big Boy for me). A grinding wheel--a small Dremel grinding wheel works--might speed up the process over a file, but go slow and check
Even when you've got the base tapered so you can get it started well, you'll still have to pound to get it centered; well, at least it won't come loose! Remove the fiber-optic pipe before doing so (the pipe has only two supports, and so is more easy to snap as you pound the sight), and replace it (presses in) when you're done.
Very pleased with the final result: handsome and very bright.
Trapper warning(19.12.2009)
If you have a Winchester 94 Trapper, these fiber optic sights will not fit. They don't clear the front barrel band. I tried one and, after a lot of filing and fitting, the little metal tubes holding the fiber optic piece broke off, indicating that the construction isn't strong enough for the application. They don't fit and they're too delicate. Brownell's needs better application info. I've had good luck with Marble's gold/white dot sights on this gun. Still had to do some filing though.
Artikel-Nr.: 579204135 MARBLE ARMS .410" FIBER OPTIC GLOW 41-W FRONT SIGHT STEEL ORANGE Herstellerproduktnummer: 204135871373002690 Präzisionsvisiere für Gewehre mit und ohne Rampensockel. Die Klinge ist elegant geformt und fällt nach vorne ab. Hergestellt aus Stahl und schön gebläut, um auf jeder Waffe gut auszusehen. GLOW SIGHTS: Zwei Farben - Orange oder Grün .060 "Durchmesser. Optische Stange. RAMP MOUNTED - .340 breite Basis.
28.9EUR628,90 €
*
Lieferzeit ca. 14-21 Werktage. 6 Stk. im Lager USA
Artikel-Nr.: 579204136 MARBLE ARMS .410" FIBER OPTIC GLOW 41-W FRONT SIGHT STEEL GREEN Herstellerproduktnummer: 204136871373002706 Präzisionsvisiere für Gewehre mit und ohne Rampensockel. Die Klinge ist elegant geformt und fällt nach vorne ab. Hergestellt aus Stahl und schön gebläut, um auf jeder Waffe gut auszusehen. GLOW SIGHTS: Zwei Farben - Orange oder Grün .060 "Durchmesser. Optische Stange. RAMP MOUNTED - .340 breite Basis.
28.9EUR628,90 €
*
Lieferzeit ca. 14-21 Werktage. 6 Stk. im Lager USA
