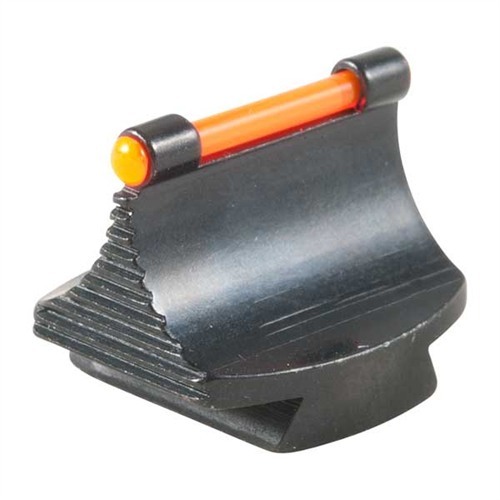

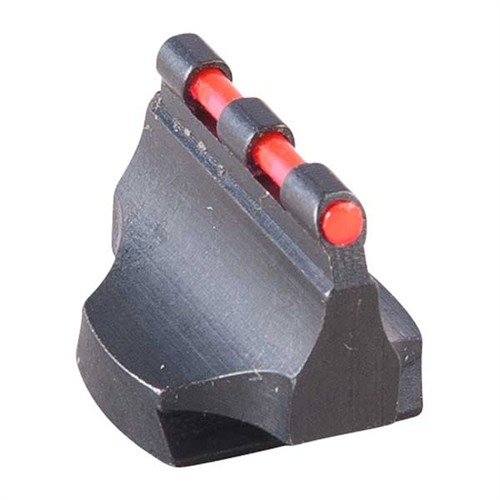

Precision-made sights for rifles, both with and without ramp bases. The blade is gracefully contoured, sloping toward the front. Made of steel and nicely blued to look good on any gun. GLOW SIGHTS: Two colors - Orange or Green .060" dia. optic rod. RAMP MOUNTED - .340 wide base.
SPECS: Steel, blue, polished finish. .620" (15mm) long. ORDERING: Select the sight height required using the Marbles and/or Williams charts and determine which Sight Style, Bead Type and Width is needed from the info above. Using the chart beside this copy, find the correct Marbles Sight and note the 9 digit Ordering No. For example: If you need a Contoured Ramp Front Sight, “MR” width, .290" (7.4mm) high, with a 1/16" (1.6mm) gold bead, follow the Height listing to the .290" figure, read across on the “MR” line to the 1/16" gold bead and note the number: 579-502-911. 1" = (2.54cm)
Präzisionsgefertigte Visierungen für deine Gewehre!
Die RIFLE FIBER OPTIC GLOW 50-W FRONT SIGHT von MARBLE ARMS bietet dir eine hervorragende Sichtbarkeit, egal ob mit oder ohne Rampenbasis. Die Klinge ist elegant konturiert und verläuft sanft zur Vorderseite. Hergestellt aus Stahl und schön blaugebläut, sieht sie an jedem Gewehr gut aus.
GLOW SIGHTS
Erhältlich in zwei Farben - Orange oder Grün mit einem Durchmesser von .060" (1,5 mm) für den optischen Stab.
Technische Daten
- Material: Stahl, blaugebläut, polierte Oberfläche
- Länge: .620" (15 mm)
- RAMP MOUNTED - .340" breite Basis
Bestellung
Wähle die benötigte Sichthöhe anhand der Marbles und/oder Williams Tabellen aus und bestimme, welcher Sichtstil, welche Perlenart und Breite du benötigst. Nutze die Tabelle neben diesem Text, um die richtige Marbles Sicht zu finden und notiere die 9-stellige Bestellnummer. Zum Beispiel: Wenn du eine konturierte Rampen-Frontsicht mit „MR“ Breite, .290" (7,4 mm) hoch und einer 1/16" (1,6 mm) Goldperle benötigst, folge der Höhenauflistung zur .290" Zahl, lese auf der „MR“ Linie zur 1/16" Goldperle und notiere die Nummer: 579-502-911.
1" = (2.54 cm)
