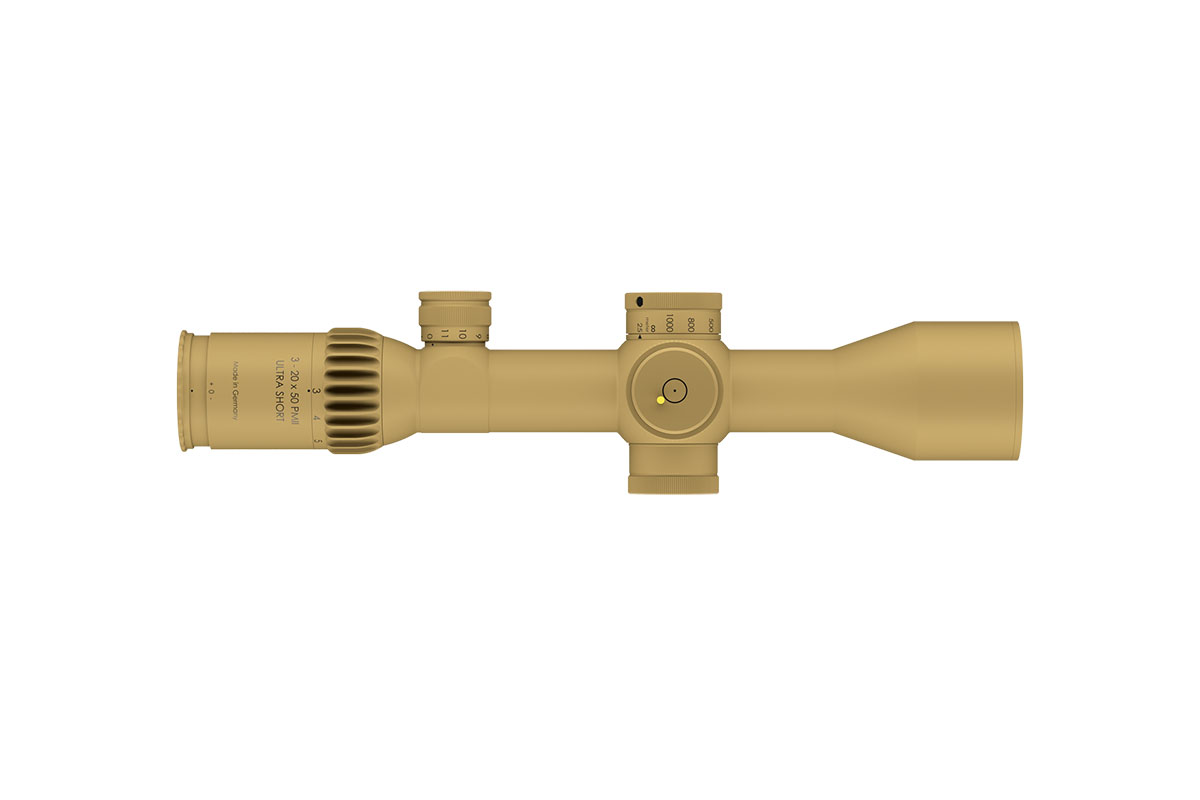

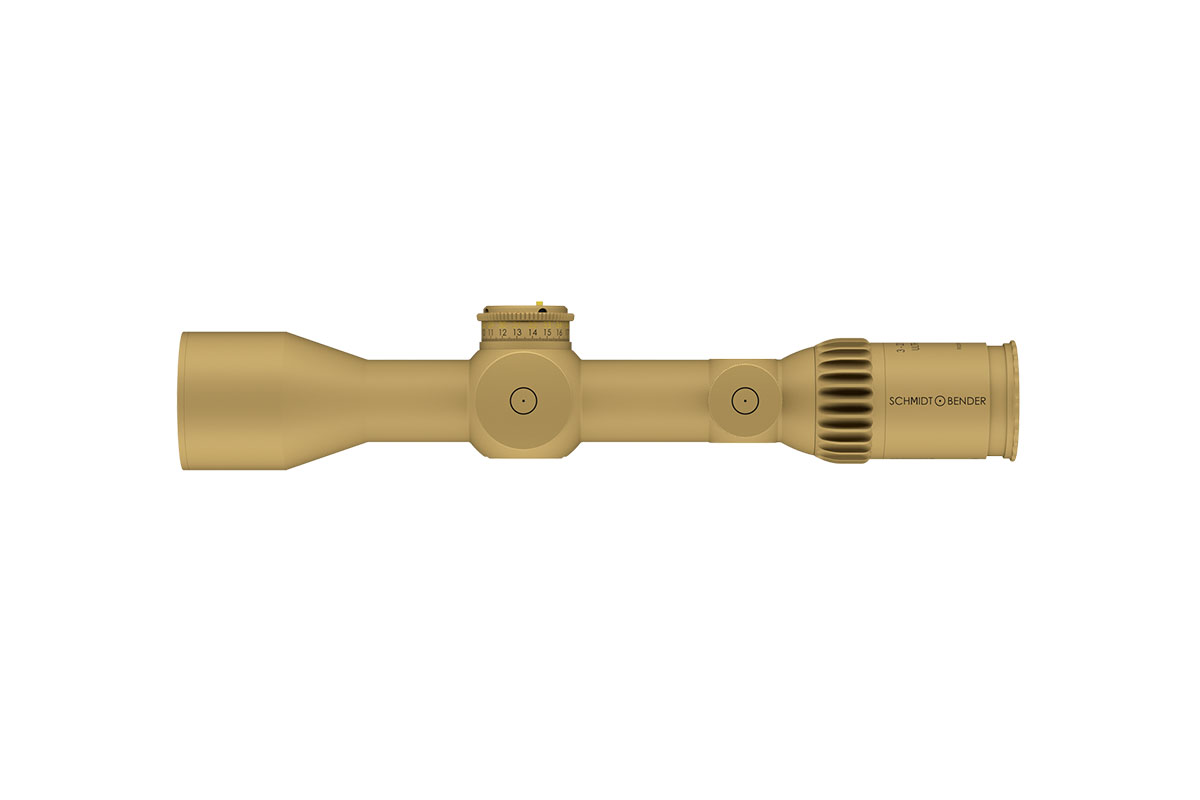

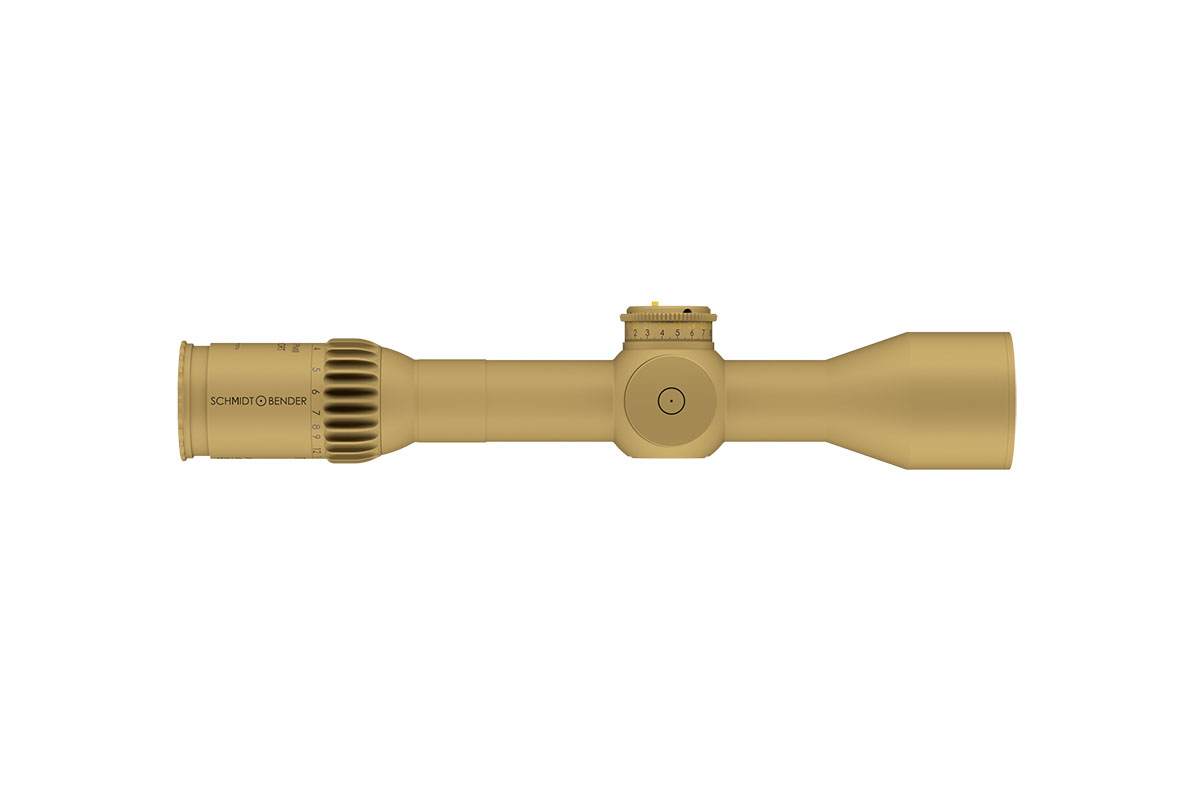

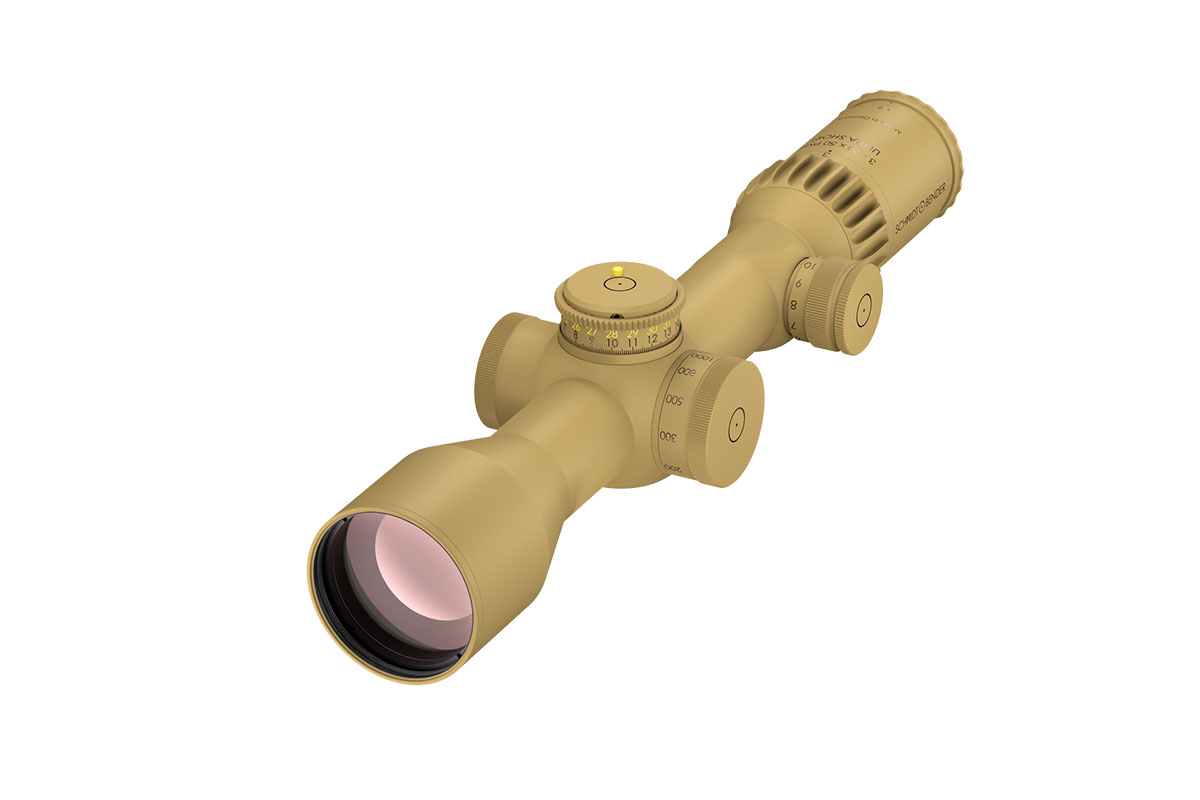

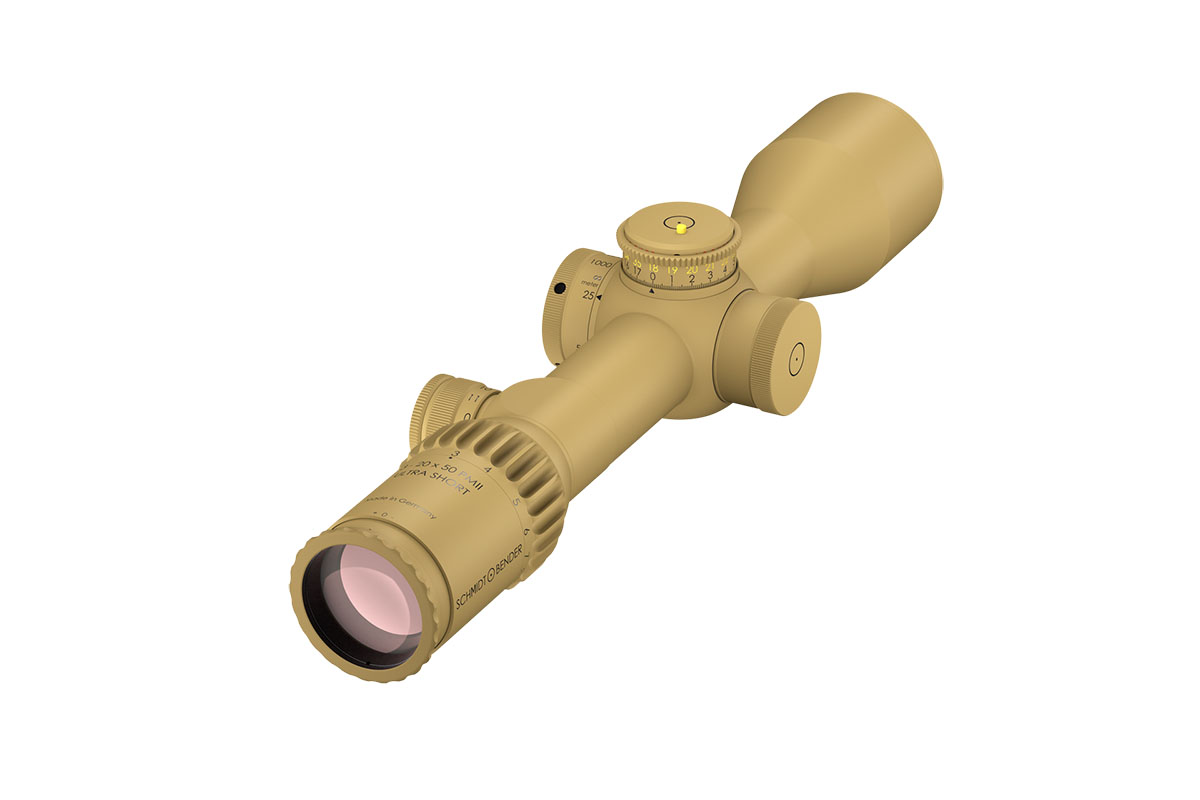

The 3‑20×50 PM II Ultra Short from Schmidt and Bender is a compact yet powerful riflescope engineered for high-performance engagements across medium to long distances. With its 3–20× magnification range and a 50 mm objective lens, it offers outstanding optical clarity and flexibility in a streamlined form factor.
Constructed around a robust 34 mm main tube, it maintains a length of approximately 340 mm and weighs around 900 g, striking an excellent balance between size and performance—ideal for mounting on compact platforms without compromising optics.
Its field of view spans roughly 13.0–2.1 m at 100 m, providing broad situational awareness at lower magnification and refined detail at the high end. The exit pupil ranges around 11.4–2.5 mm, and the eye relief is approximately 90 mm, supporting comfortable shooting in varied positions while maintaining strong light-gathering even as light fades.
Advanced features include first focal plane (FFP) illuminated reticle options, side parallax adjustment (from approx. 25 m to infinity), and a low-profile elevation turret optimized for tactical precision.
Key Specifications:
Magnification: 3–20×
Objective Lens Diameter: 50 mm
Main Tube Diameter: 34 mm
Field of View: approx. 13.0–2.1 m @100 m
Exit Pupil: approx. 11.4–2.5 mm
Eye Relief: approx. 90 mm
Length: approx. 340 mm
Weight: approx. 900 g
With precision optics, compact build, and rugged mechanical design, the 3‑20×50 PM II Ultra Short is built for serious shooters who demand premium performance in a versatile package.
Kompakte Power für präzises Schießen!
Das 3–20×50 PM II Ultra Short von SCHMIDT U. BENDER ist ein leistungsstarkes Zielfernrohr, das für hochgradige Einsätze über mittlere bis lange Distanzen entwickelt wurde. Mit einem Vergrößerungsbereich von 3–20× und einem Durchmesser des Objektivs von 50 mm bietet es hervorragende optische Klarheit und Flexibilität in einem kompakten Design.
Produktmerkmale:
- Vergrößerung: 3–20×
- Durchmesser des Objektivs: 50 mm
- Durchmesser des Hauptrohrs: 34 mm
- Sichtfeld: ca. 13.0–2.1 m @100 m
- Austrittspupille: ca. 11.4–2.5 mm
- Augenabstand: ca. 90 mm
- Länge: ca. 340 mm
- Gewicht: ca. 900 g
Das Zielfernrohr hat ein robustes 34 mm Hauptrohr und wiegt nur etwa 900 g, was es ideal für kompakte Plattformen macht, ohne dabei die optische Leistung zu beeinträchtigen. Es bietet ein Sichtfeld von etwa 13.0–2.1 m auf 100 m, was dir eine breite Situationswahrnehmung bei niedriger Vergrößerung und feine Details bei hoher Vergrößerung ermöglicht.
Zusätzlich verfügt das 3–20×50 PM II Ultra Short über:
- Beleuchtete Absehen im ersten Fokus
- Seitenparallaxenverstellung (von ca. 25 m bis unendlich)
- Niedrigprofil-Höhenverstellung für taktische Präzision
Mit präziser Optik, kompakter Bauweise und robuster mechanischer Konstruktion ist das 3–20×50 PM II Ultra Short für ernsthafte Schützen konzipiert, die in einem vielseitigen Paket erstklassige Leistung verlangen.
