Eigenschaften
- Modell:
700
- Waffentyp:
Remington
- Versandgewicht: 0,068kg
- Versandhöhe: 8mm
- Versandbreite: 71mm
- Versandlänge: 147mm
- UPC: 050806008366
Preise inkl. MwSt., zzgl. Versand
Artikel-Nr.: 080097700
050806008366 Das federbelastete Werkzeug bietet konstanten, geraden Druck nach hinten, um die Bolzenlugs während des Lappens mit 600 bis 800 Körnung Siliziumkarbid-Abschleifmittel quadratisch gegen den Empfänger zu halten. Es liefert bessere Ergebnisse als bloßer Daumendruck. Austauschbare, gewindete Sleeves passen auf die beliebten unten aufgeführten Aktionen.Lieferzeit ca. 14-21 Werktage.
Preise inkl. MwSt., zzgl. Versand

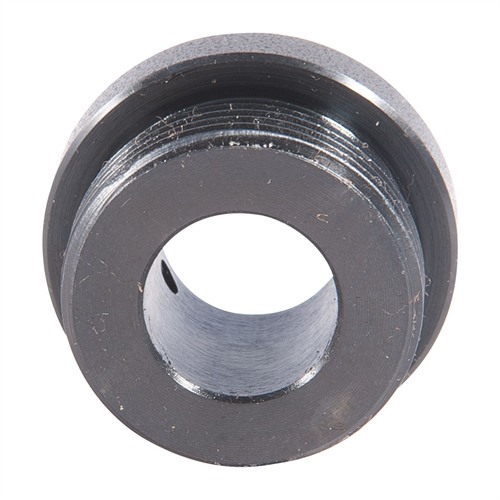

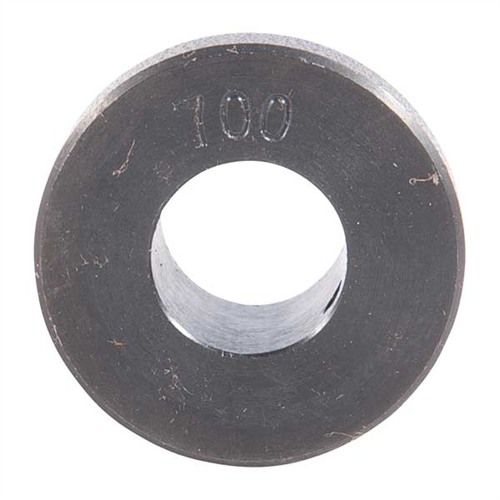

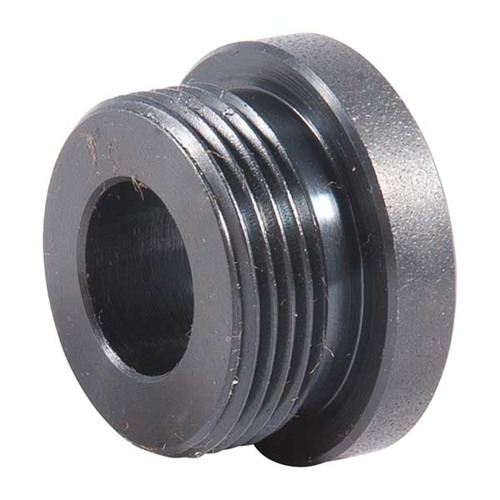

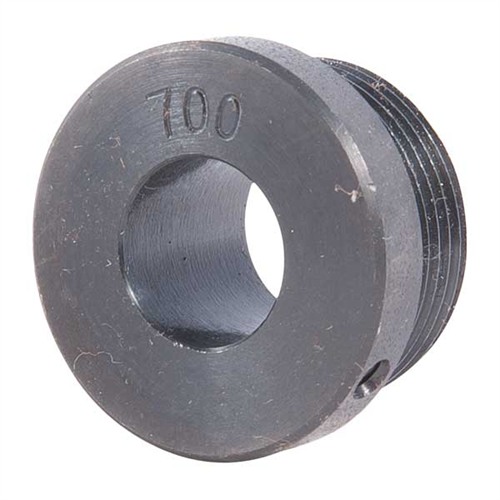

Das BOLT LAPPING TOOL mit einem gewindeten Sleeve ist das ideale Werkzeug, um die Verriegelungsnuten deines Remington 700 präzise zu bearbeiten. Mit einem federbelasteten Design sorgt es für konstanten Druck und garantiert, dass die Bolzenlugs immer rechtwinklig zum Empfänger stehen.
Dieses Werkzeug bietet konstanten, geraden Druck, während du mit 600 bis 800 Körnung Siliziumkarbid-Abschleifmittel lapst. Es liefert bessere Ergebnisse als bloßer Daumendruck. Die wechselbaren Gewindesleeves passen auf die gängigen Aktionen, die unten aufgeführt sind.
Das M14/M1A Set enthält einen großen Plunger und einen speziellen Lapping-Griff, der für diese Modelle erforderlich ist. Der Mauser Large Sleeve passt auf große Ring-Mauser-Aktionen, während der Mauser Small für kleine Ring-Mauser-Aktionen geeignet ist. Der Savage Small Sleeve passt auf Savage-Aktionen in allen Kalibern, außer Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) und Win Short Mag (WSM). Der Savage Large Sleeve ist nur für Savage-Aktionen in RUM, RSUM und WSM Kalibern geeignet.
Ein Gun Set enthält den Bolzenwerkzeugkörper, den Plunger und den passenden Sleeve für das angegebene Modell. Das M14/M1A One Gun Set enthält zusätzlich einen großen Plunger, den richtigen Sleeve und ein spezielles Bolzen-Lapping-Werkzeug, das nur für M14/M1A/M1 Garand geeignet ist. Das Kit enthält alle Werkzeuge, die notwendig sind, um alle in der Tabelle aufgeführten Modelle zu lapen.
*Sonderpreis, siehe unten.
700
Remington
Very nice fit of parts. 31.08.2015
I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.
Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.
I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.
Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.
