Eigenschaften
- Modell:
Universal Rifles
- Waffentyp:
Savage Arms
- Versandgewicht: 0,023kg
- Versandhöhe: 15mm
- Versandbreite: 81mm
- Versandlänge: 180mm
- UPC: 050806008229
Preise inkl. MwSt., zzgl. Versand
Artikel-Nr.: 080097001
050806008229 Das federbelastete Werkzeug bietet konstanten, geraden Druck nach hinten, um die Bolzenlugs während des Lappens mit 600 bis 800 Körnung Siliziumkarbid-Abschleifmittel quadratisch gegen den Empfänger zu halten. Es liefert bessere Ergebnisse als bloßer Daumendruck. Austauschbare, gewindete Sleeves passen auf die beliebten unten aufgeführten Aktionen.Lieferzeit ca. 14-21 Werktage.
Preise inkl. MwSt., zzgl. Versand
Die BOLT LAPPING TOOLS von BROWNELLS bieten dir eine innovative Lösung für das Lapping deiner Bolt Lugs. Mit einem interchangeable Design sorgt dieses Werkzeug für konstanten Federdruck und präzises Anpassen der Locking Lug Recesses.
Das federbelastete Werkzeug gibt konstanten, geraden Druck nach hinten, um die Bolt Lugs während des Lappings mit 600 bis 800er Siliconcarbid-Schleifpapier quadratisch gegen den Receiver zu halten. Dies liefert bessere Ergebnisse als nur Daumendruck. Die austauschbaren Gewindehülsen passen auf die gängigen Aktionen, die unten aufgeführt sind.

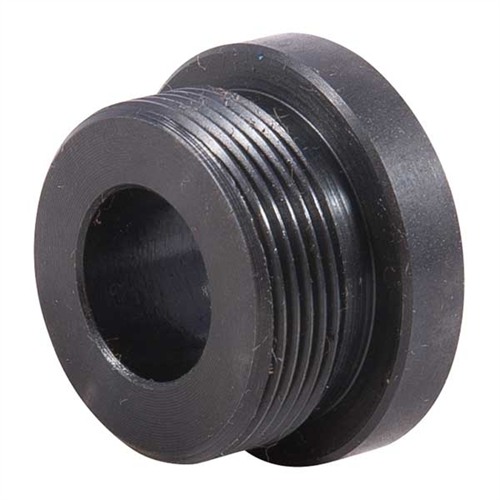

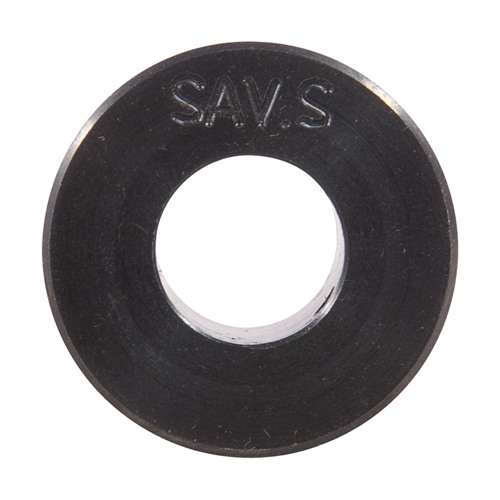

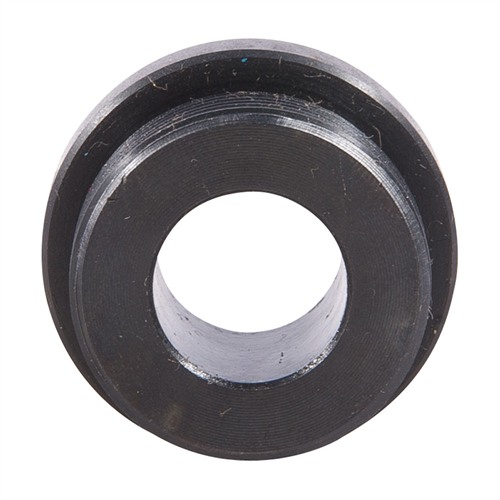

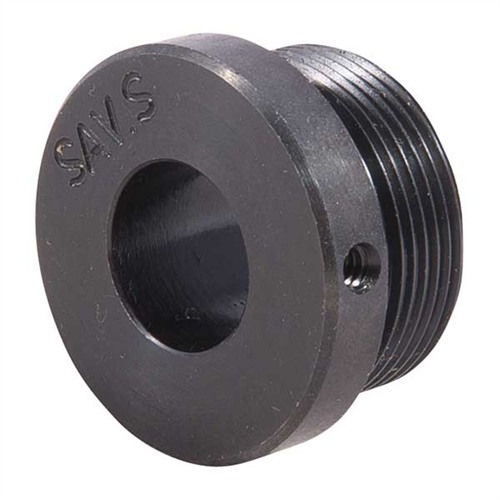

Das M14/M1A Set enthält eine große Plunger-Hülse und einen speziellen Lapping-Griff, die für diese Modelle erforderlich sind. Die Mauser Large-Hülse passt auf große Ring-Mauser-Aktionen, während die Mauser Small-Hülse für kleine Ring-Mauser-Aktionen geeignet ist. Die Savage Small-Hülse passt auf Savage-Aktionen in allen Kalibern, außer Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) und Win Short Mag (WSM). Die Savage Large-Hülse passt nur auf Savage-Aktionen in RUM, RSUM und WSM Kalibern.
Ein Gun Set enthält den Bolt Tool Body, die Plunger und die passende Hülse für das angegebene Modell. Das M14/M1A One Gun Set enthält den Bolt Tool Body, die große Plunger-Hülse, die passende Hülse und ein spezielles Bolt Lapping Tool, das einzigartig für M14/M1A/M1 Garand ist. Das Kit enthält alle Werkzeuge, die notwendig sind, um alle Modelle in der Tabelle zu lapen.
Besonderer Preis, siehe unten.
Universal Rifles
Savage Arms
Very nice fit of parts. 31.08.2015
I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.
Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.
I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.
Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.
