Eigenschaften
- Modell:
Universal Rifles
- Waffentyp:
Savage Arms
- Versandgewicht: 0,136kg
- Versandhöhe: 18mm
- Versandbreite: 74mm
- Versandlänge: 198mm
- UPC: 050806008250
Preise inkl. MwSt., zzgl. Versand
Artikel-Nr.: 080097005
050806008250 Das federbelastete Werkzeug bietet konstanten, geraden Druck nach hinten, um die Bolzenlugs während des Lappens mit 600 bis 800 Körnung Siliziumkarbid-Abschleifmittel quadratisch gegen den Empfänger zu halten. Es liefert bessere Ergebnisse als bloßer Daumendruck. Austauschbare, gewindete Sleeves passen auf die beliebten unten aufgeführten Aktionen.Lieferzeit ca. 14-21 Werktage.
Preise inkl. MwSt., zzgl. Versand

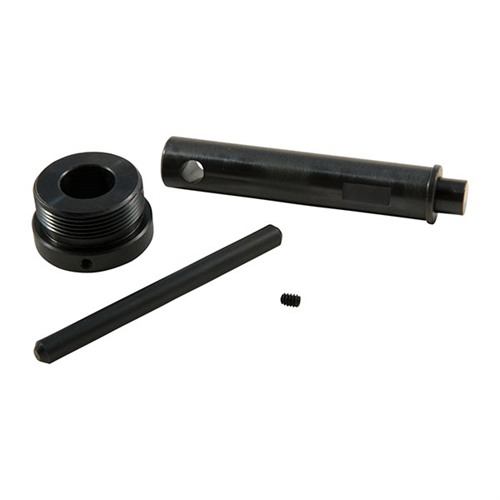

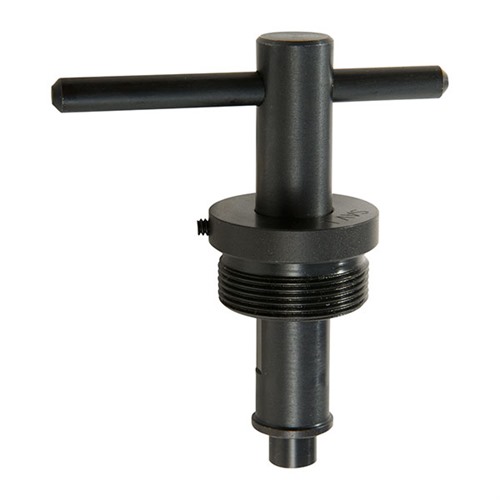

Das BOLT LAPPING TOOLS, 2-PIECE BOLT LAPPING KIT FOR SAVAGE LARGE von BROWNELLS ist das ideale Werkzeug für jeden Waffenliebhaber, der Wert auf höchste Präzision legt.
Das federbelastete Werkzeug sorgt für einen konstanten, geraden Druck, um die Bolzenlappen während des Lapens mit 600 bis 800er Körnung, Siliziumkarbid-Schleifmittel, quadratisch gegen den Empfänger zu halten. Dies liefert bessere Ergebnisse als bloßer Daumendruck. Die austauschbaren Gewindehülsen passen auf die beliebten Aktionen, die unten aufgeführt sind.
Das M14/M1A Set enthält eine große Plunger und einen speziellen Lapping-Griff, die für diese Modelle erforderlich sind. Die Mauser Large Hülsen passen auf große Ring-Mauser-Aktionen, während die Mauser Small auf kleine Ring-Mauser-Aktionen passt. Die Savage Small Hülse passt auf Savage-Aktionen in allen Kalibern außer Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) und Win Short Mag (WSM). Die Savage Large Hülse passt nur auf Savage-Aktionen in RUM, RSUM und WSM Kalibern.
Ein Gun Set enthält den Bolzenwerkzeugkörper, die Plunger und die passende Größe der Hülse für das aufgeführte Modell. Das M14/M1A One Gun Set enthält den Bolzenwerkzeugkörper, die große Plunger, die passende Größe der Hülse sowie eine spezielle Hülse und ein spezielles Bolzenlap-Werkzeug, das nur für M14/M1A/M1 Garand geeignet ist. Das Kit enthält alle Werkzeuge, die notwendig sind, um alle in der Tabelle aufgeführten Modelle zu lapen.
*Besonderer Preis, siehe unten.
Universal Rifles
Savage Arms
Very nice fit of parts. 31.08.2015
I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.
Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.
I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.
Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.
