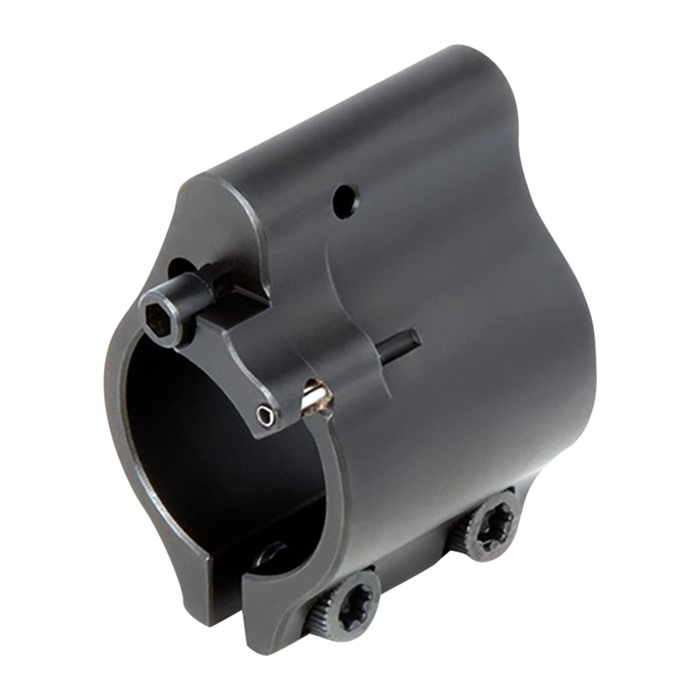

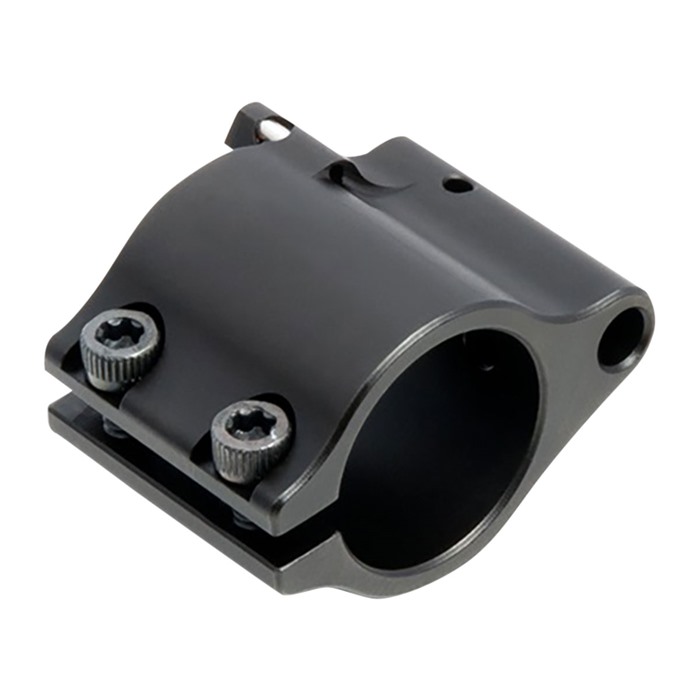

The Superlative Arms patented “Bleed Off”, direct impingement, gas block for the AR15 platform adjusts the gas flow by bleeding the gas out of the block instead of restricting the flow like conventional adjustable blocks. Results: The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler. Reduction of felt recoil. Patented adjustment detent is located outside of the block and therefore no contamination. The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up. Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out. When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back. Data: Gas Block Material: 416 SS Barrel Diameter: 0.625" Weight: 1.34 oz. Length: 1.00" Attachment Type: Clamp on Adjustment: Front of Block Included: Gas Block - Assembled (2) 10-32 x 3/16" Socket Head Cap Screws (1) Gas Tube Roll Pins (1) 3/32 X 6" L-Shaped Hex Keys Installation Instructions & QR code for video tutorial
Entdecke den revolutionären AR-15 Clamp On Adjustable Gas Block!
Der patentierte “Bleed Off” Gasblock von Superlative Arms für die AR15-Plattform ist eine bahnbrechende Lösung, die den Gasfluss anpasst, indem sie das Gas aus dem Block ableitet, anstatt den Fluss wie herkömmliche verstellbare Blöcke zu beschränken.
Produktbeschreibung
Mit diesem Gasblock wird der Druck im Block nur auf das notwendige Maß reduziert, um den Bolt Carrier anzutreiben. Das verbleibende Gas und der Druck werden aus dem Block abgeleitet, was das System deutlich sauberer und kühler laufen lässt.
- Weniger fühlbarer Rückstoß.
- Der patentierte Einstellungsdetent befindet sich außerhalb des Blocks, wodurch eine Kontamination ausgeschlossen wird.
- Die Gasverstellungsschraube schränkt den Gasfluss nicht ein; somit gibt es keine Erosion oder Festfressen der Schraube und keinen Verlust des Detents durch Kohlenstoffablagerungen.
- Obwohl die Schraube abnehmbar ist, haben wir einen Sicherheitsmechanismus hinzugefügt, der verhindert, dass du die Schraube unbeabsichtigt ganz herausdrehst.
- Beim Einsatz von SBRs und/oder Schalldämpfern ermöglicht der Bleed Off-Port, dass übermäßiger Druck aus dem Block abgelassen wird, was den Rückstoß reduziert.
Technische Daten
- Gas Block Material: 416 SS
- Laufdurchmesser: 0.625"
- Gewicht: 1.34 oz
- Länge: 1.00"
- Befestigungstyp: Clamp on
- Einstellung: Vorderseite des Blocks
Im Lieferumfang enthalten:
- Gas Block - Montiert
- (2) 10-32 x 3/16" Innensechskantschrauben
- (1) Gasrohr-Rollstifte
- (1) 3/32 X 6" L-förmige Innensechskantschlüssel
- Montageanleitung & QR-Code für das Video-Tutorial
