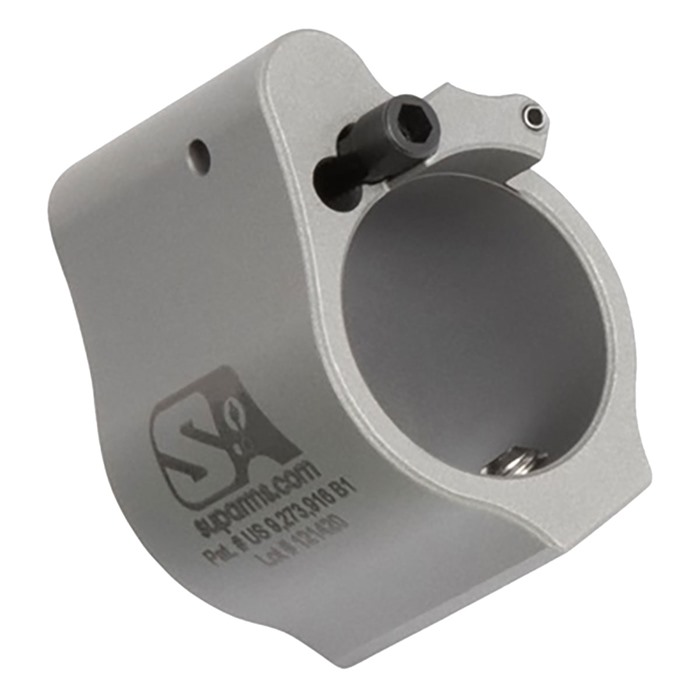

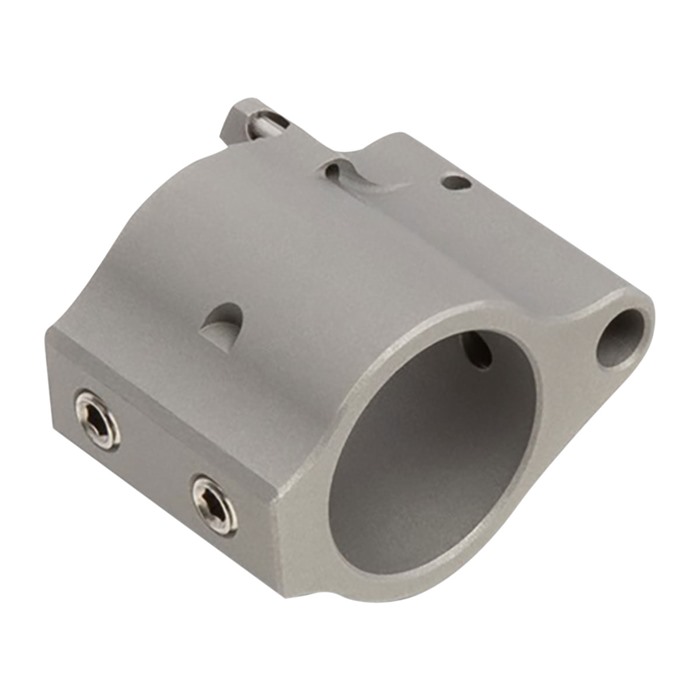

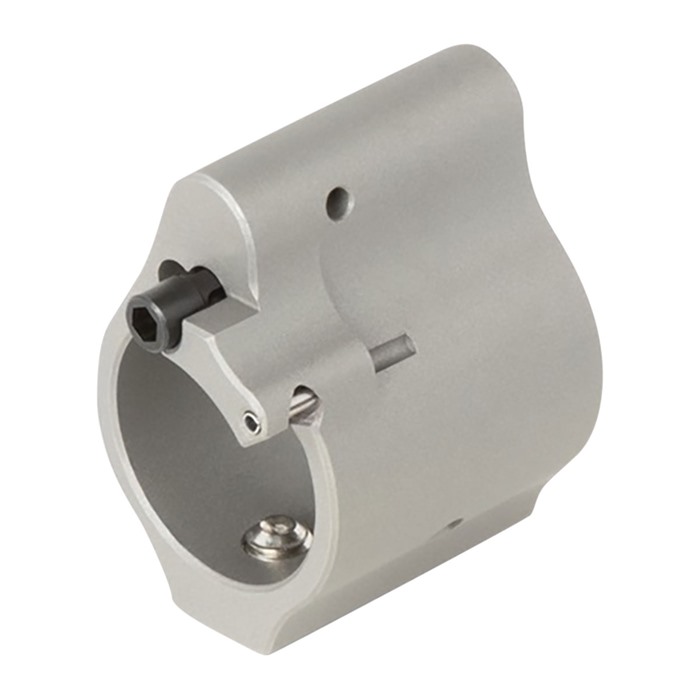

The Superlative Arms patented “Bleed Off”, direct impingement, gas block for the AR15 platform adjusts the gas flow by bleeding the gas out of the block instead of restricting the flow like conventional adjustable blocks. Results: The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler. Reduction of felt recoil. Patented adjustment detent is located outside of the block and therefore no contamination. The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up. Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out. When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back. Data: Gas Block Material: 416 SS Barrel Diameter: 0.625" Weight: 1.37 oz. Length: 1.00" Attachment Type: Solid Gas Adjustment: 30 Locked Positions, Front Of Block Bleed Off Port: Front Of Block Included: Gas Block - Assembled (2) 10-32 x 3/16" Set Screws (1) Gas Tube Roll Pins (1) 3/32 X 6" L-Shaped Hex Keys Installation Instructions & QR code for video tutorial
Entdecke die innovative Lösung für dein AR-15!
Der patentierte „Bleed Off“ Gasblock von Superlative Arms bietet eine revolutionäre Möglichkeit, den Gasfluss für die AR15-Plattform anzupassen. Anstatt den Fluss wie herkömmliche verstellbare Blöcke zu beschränken, lässt dieser Gasblock das Gas ab, wodurch dein System viel sauberer und kühler läuft.
Produktbeschreibung
- Material des Gasblocks: 416 SS
- Durchmesser des Laufs: 0.625"
- Gewicht: 1.37 oz
- Länge: 1.00"
- Montageart: Solid
- Gasverstellung: 30 fixierte Positionen, vorne am Block
- Bleed Off Port: Vorne am Block
Der Druck im Block wird nur auf das notwendige Maß reduziert, um den Verschluss zu betreiben. Der verbleibende Gasdruck wird abgelassen, was zu einer spürbaren Reduzierung des Rückstoßes führt. Das patentierte Verstell-Dent befindet sich außerhalb des Blocks, wodurch eine Kontamination ausgeschlossen ist. Der Gasverstellschraube schränkt den Gasfluss nicht ein, was Erosion oder Festfressen der Schraube sowie einen Verlust des Dents durch Kohlenstoffablagerungen verhindert.
Obwohl der Gasblock abnehmbar ist, haben wir einen Sicherheitsmechanismus hinzugefügt, der verhindert, dass du die Schraube versehentlich ganz herausdrehst. Bei der Verwendung von SBRs und/oder Schalldämpfern ermöglicht der Bleed Off Port, dass übermäßiger Druck aus dem Block entweichen kann, was den Rückstoß reduziert.
Im Lieferumfang enthalten:
- Gasblock - montiert
- (2) 10-32 x 3/16" Set-Schrauben
- (1) Gasrohr-Rollstifte
- (1) 3/32 X 6" L-förmige Inbusschlüssel
- Installationsanleitung & QR-Code für Video-Tutorial
