The Superlative Arms patented “Bleed Off”, direct impingement, gas block for the AR15 platform adjusts the gas flow by bleeding the gas out of the block instead of restricting the flow like conventional adjustable blocks. Results: The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler. Reduction of felt recoil. Patented adjustment detent is located outside of the block and therefore no contamination. The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up. Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out. When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back. Data: Gas Block Material: 416 SS Barrel Diameter: 0.625" Weight: 1.37 oz. Length: 1.00" Attachment Type: Solid Gas Adjustment: 30 Locked Positions, Front Of Block Bleed Off Port: Front Of Block Included: Gas Block - Assembled (2) 10-32 x 3/16" Set Screws (1) Gas Tube Roll Pins (1) 3/32 X 6" L-Shaped Hex Keys Installation Instructions & QR code for video tutorial
Die perfekte Lösung für dein AR-15: Der einstellbare Gasblock!

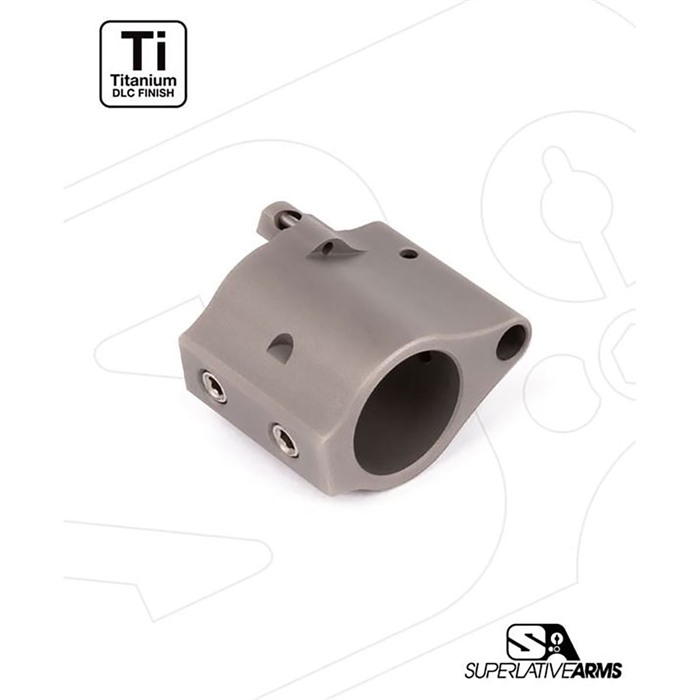

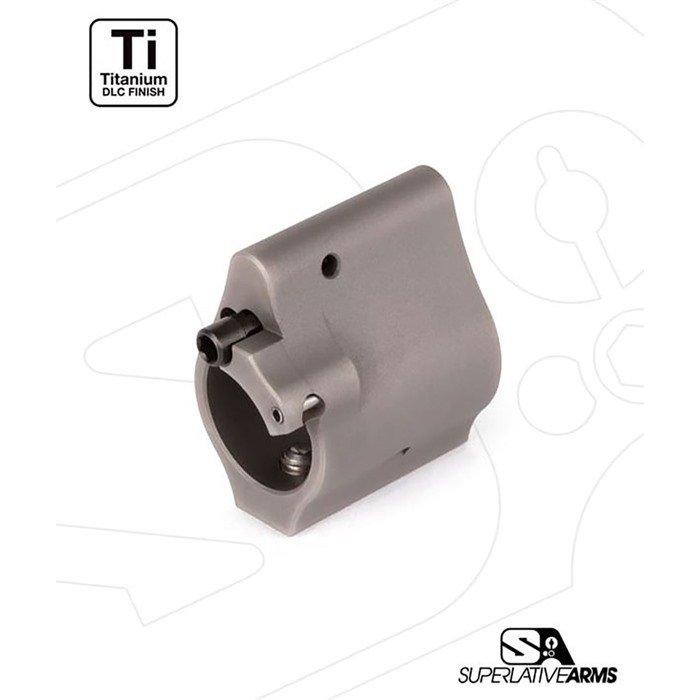

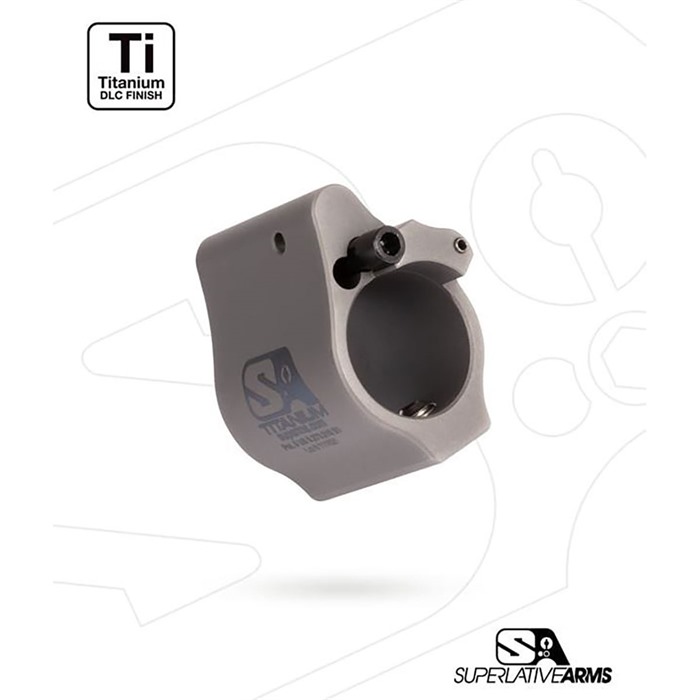

Entdecke den patentierten „Bleed Off“ Gasblock von Superlative Arms für die AR15-Plattform. Dieser innovative Gasblock passt den Gasfluss an, indem er das Gas aus dem Block abbluten lässt, anstatt den Fluss wie herkömmliche verstellbare Blöcke zu beschränken.
Produktbeschreibung
Durch die Verwendung dieses Gasblocks wird der Druck, der im Block erzeugt wird, nur auf das notwendige Maß reduziert, um den Verschluss zu betreiben. Das verbleibende Gas und der Druck werden aus dem Block abgeleitet, was dazu führt, dass das System viel sauberer und kühler läuft.
- Reduzierung des gefühlten Rückstoßes.
- Der patentierte Einstellungsdetent befindet sich außerhalb des Blocks, wodurch eine Kontamination vermieden wird.
- Die Gasverstellungsschraube schränkt den Gasfluss nicht ein, was Erosion oder Festfressen der Schraube sowie einen Verlust des Detents durch Kohlenstoffablagerungen verhindert.
- Obwohl die Schraube abnehmbar ist, haben wir einen Sicherheitsmechanismus hinzugefügt, der verhindert, dass du die Schraube versehentlich ganz herausdrehst.
- Bei der Verwendung von SBRs und/oder Schalldämpfern ermöglicht der Bleed Off Port, dass übermäßiger Druck aus dem Block entweicht, wodurch der Rückstoß reduziert wird.

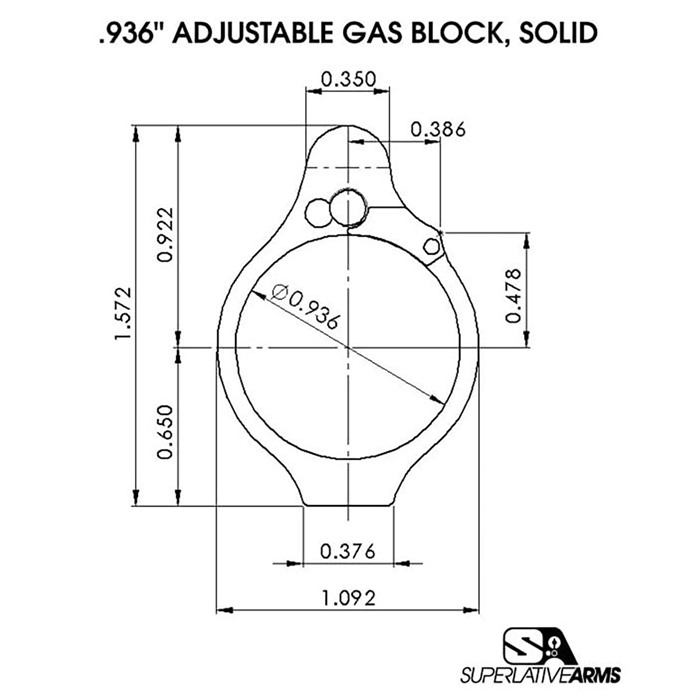

Technische Daten
- Gasblock-Material: 416 SS
- Laufdurchmesser: 0.625"
- Gewicht: 1.37 oz
- Länge: 1.00"
- Befestigungsart: Solid
- Gasverstellung: 30 gesperrte Positionen, Vorderseite des Blocks
- Bleed Off Port: Vorderseite des Blocks
Lieferumfang
- Gasblock - Montiert
- (2) 10-32 x 3/16" Set-Schrauben
- (1) Gasrohr-Rollstifte
- (1) 3/32 x 6" L-förmige Inbusschlüssel
- Montageanleitung & QR-Code für Videoanleitung
