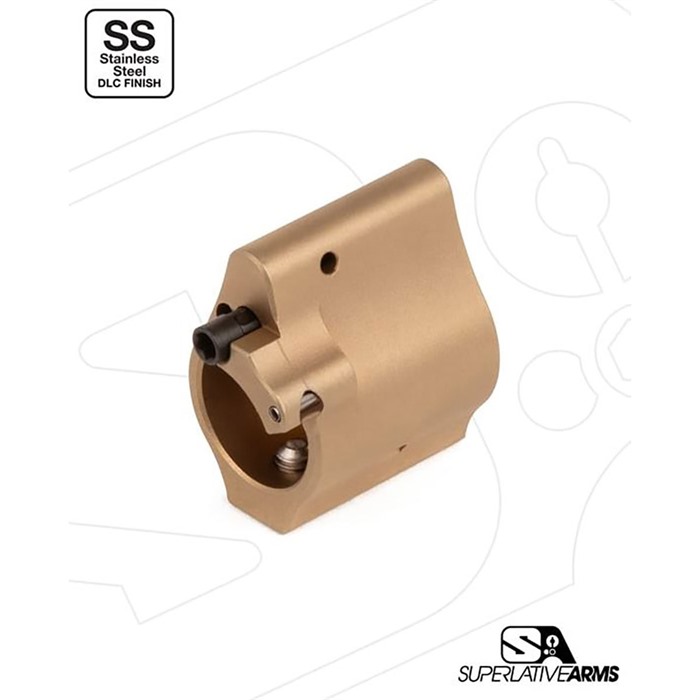

The Superlative Arms patented “Bleed Off”, direct impingement, gas block for the AR15 platform adjusts the gas flow by bleeding the gas out of the block instead of restricting the flow like conventional adjustable blocks. Results: The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler. Reduction of felt recoil. Patented adjustment detent is located outside of the block and therefore no contamination. The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up. Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out. When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back. Data: Gas Block Material: 416 SS Barrel Diameter: 0.625" Weight: 1.37 oz. Length: 1.00" Attachment Type: Solid Gas Adjustment: 30 Locked Positions, Front Of Block Bleed Off Port: Front Of Block Included: Gas Block - Assembled (2) 10-32 x 3/16" Set Screws (1) Gas Tube Roll Pins (1) 3/32 X 6" L-Shaped Hex Keys Installation Instructions & QR code for video tutorial
Entdecke die innovative AR-15 SOLID ADJUSTABLE GAS BLOCK!
Der patentierte „Bleed Off“ Gasblock von Superlative Arms für die AR15-Plattform bietet eine revolutionäre Möglichkeit, den Gasfluss zu regulieren. Anstatt den Fluss wie herkömmliche verstellbare Blöcke einzuschränken, lässt dieser Block das Gas kontrolliert ab, was zu einer saubereren und kühleren Funktion führt.
Produktbeschreibung
Die Vorteile des Superlative Arms Gasblocks sind:
- Reduzierter Druck: Der Druck im Block wird nur auf das notwendige Maß reduziert, um den Bolt Carrier anzutreiben.
- Weniger Rückstoß: Das Gefühl des Rückstoßes wird verringert.
- Sauberer Betrieb: Überschüssiges Gas und Druck werden aus dem Block abgelassen, was die Funktionalität verbessert.
- Patente Einstellung: Der Einstellungsdetent befindet sich außerhalb des Blocks, wodurch eine Kontamination vermieden wird.
- Keine Erosion: Die Gasverstellung schränkt den Gasfluss nicht ein, was Erosion oder Festfressen der Schraube verhindert.
- Sicherheitsmechanismus: Ein Sicherheitsmechanismus verhindert, dass du die Schraube versehentlich vollständig herausdrehst.
- Bleed Off Port: Bei der Verwendung von SBRs und/oder Schalldämpfern ermöglicht der Abblaseport die Abführung übermäßigen Drucks, wodurch Rückstoß verringert wird.
Technische Daten
- Material des Gasblocks: 416 SS
- Laufdurchmesser: 0.625"
- Gewicht: 1.37 oz
- Länge: 1.00"
- Befestigungsart: Solid
- Gasverstellung: 30 verriegelte Positionen, vorne am Block
- Bleed Off Port: Vorne am Block
Lieferumfang
- Gasblock - montiert
- (2) 10-32 x 3/16" Set-Schrauben
- (1) Gasrohr-Rollstifte
- (1) 3/32 x 6" L-förmige Inbusschlüssel
- Montageanleitung & QR-Code für Videoanleitung
